Product Detail

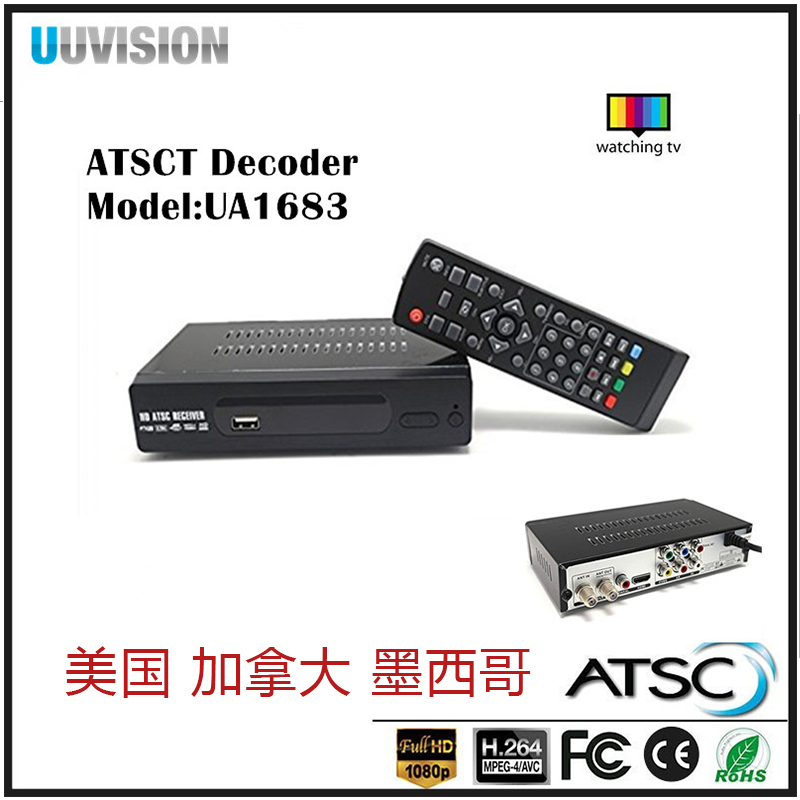

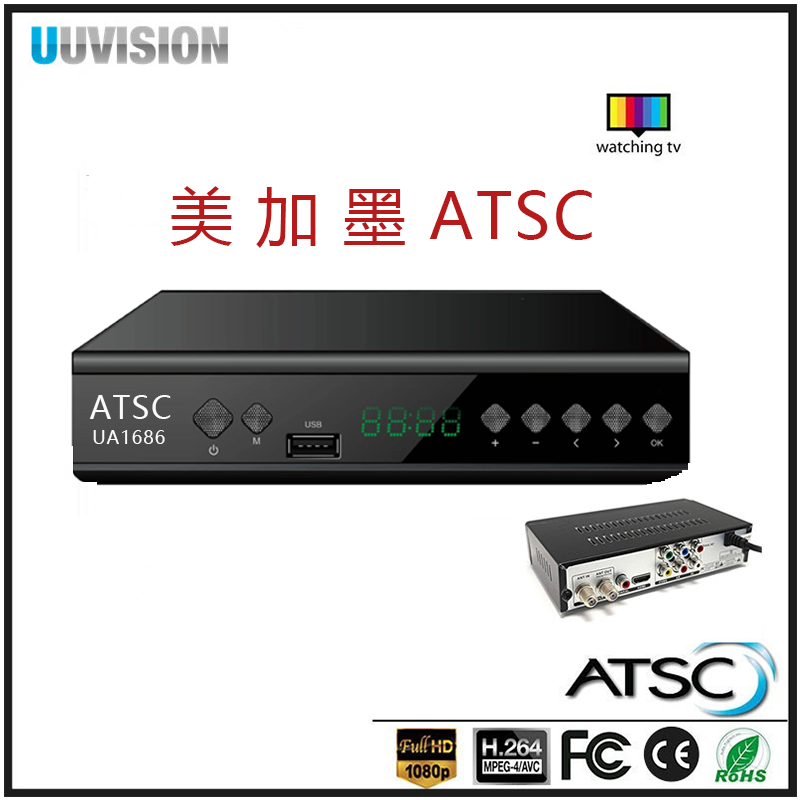

ATSC
ATSC
Detail
Superiorities

CPU MSTAR-MSD78002 (128 pin) MIPS 34Kf@600MHz

Memory 32X16Mbit DDR2 Frequency1066

Flash 32M bytes

Demodulator Type MSB1237 Chip Set

TUNER Rafael R836

USB 2.0 Embedded One Host,

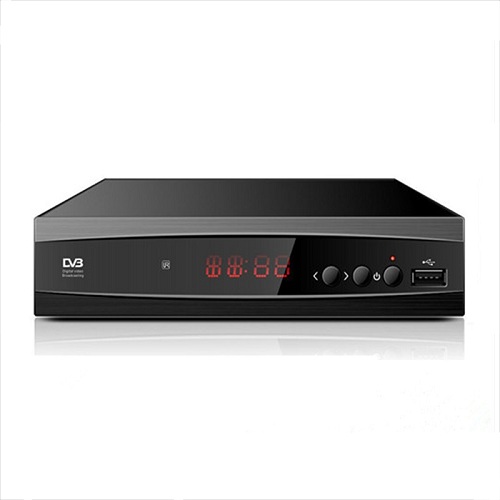

Front Panel 4-digit LED display on front panel

red LED Standby, green LED Lock

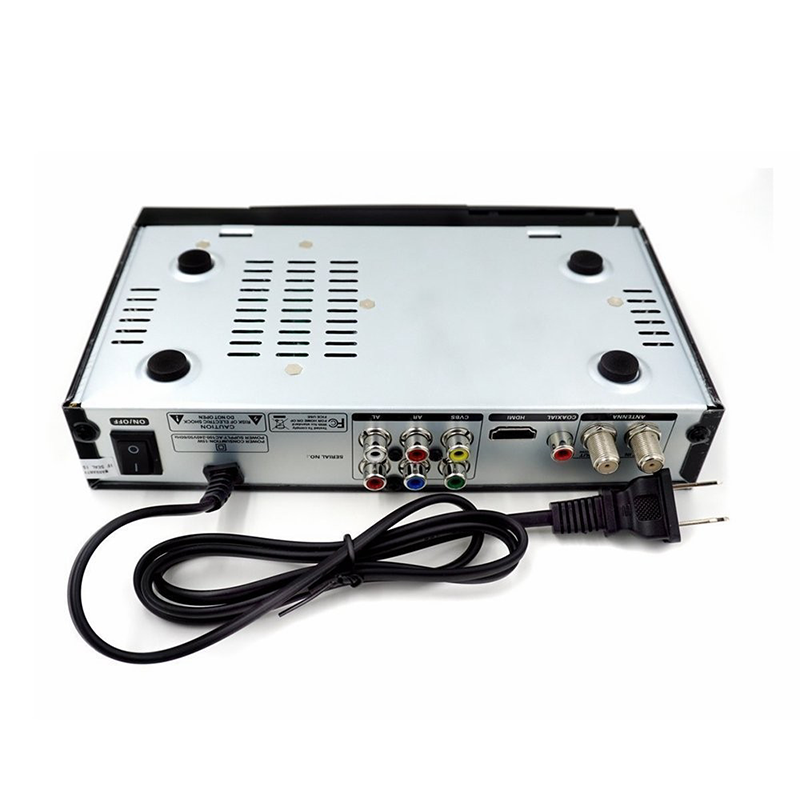

Rear Panel Tuner RF input connector Standard ISO/IEC 13818-1; ARIB STB-B10

Tuner RF Loop through connector loop through function

HD V1.3

AV RCA x1

Ypbpr RCAx1

Coaxial x1

Power AC100~240V 50Hz/60Hz

Demodulation Standard ISO/IEC 13818-1; ARIB STB-B10

Input max. bit stream rate: 36Mbps (serial) / 9Mbps (parallel)

ATSC NTIA and 8VSB Standard

QPSK, 64QAM, 256QAM

FEC: 1/2, 2/3, 3/4, 4/5,5/6,

Guard Interval: 1/4,1/8,1/16,1/32,1/128

FFT Mode: 2K, 8K, 32K

RF input frequency: 54-803MHz

Bandwith: 6MHz

Input level: -83 - -5dBm

Features

•USA ATSC 8VSB /64/256 QAM digital broadcast HD receiver

•Converts digital broadcast to your analog TV

•By remote control to choose the RF 3/4 ch output

•Sleep Timer

•Support teletext/subtitle/muti-language

•Powerful and highly effective 7-day EPG function

•AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen

•USB 2.0 for PVR, TIMESHIFT, software upgrade and media files playback

•Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P

Specifications

Video Decoder Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818

MPEG-4 Simple/Main/Advanced Profile@LEVEL3 (10Mbps)

MPEG-2 Main Profile# Main Level (15Mbps)

H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps)

Audio Decoder MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (AC3 Digital), AAC-LC, WMA

E-AC-3 (AC3 Digital Plus) decoding HE-AAC 5.1 multi-channel decoding

Media Codec avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts etc

Audio Codec WMA,MP3,AAC (.wma,.mp3,m4a)

Photo Codec JPEG, BMP, PNG

Terms& conditions

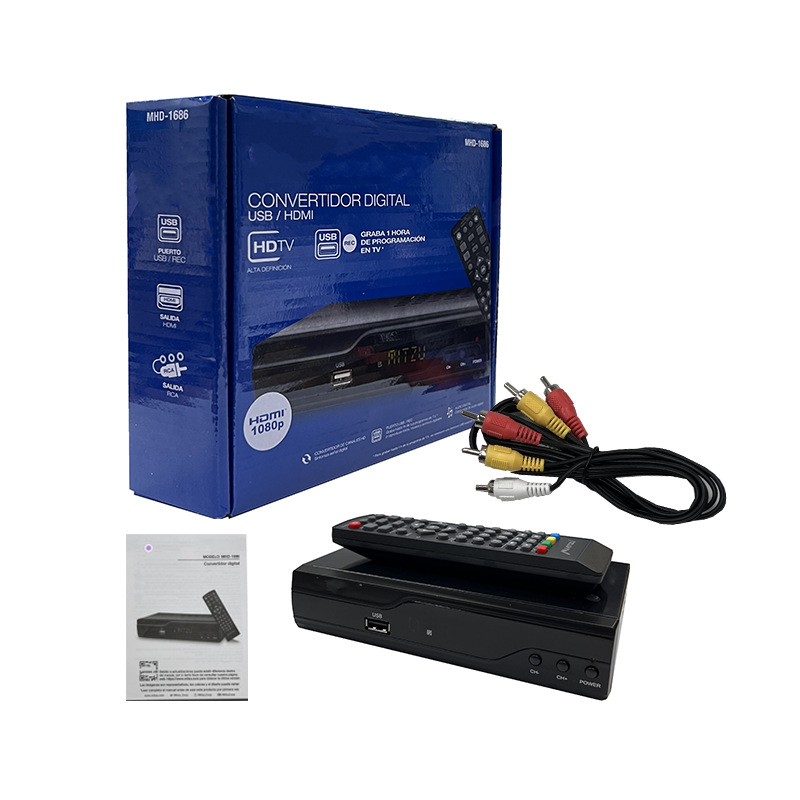

Packaging:    1* HD Receiver

                   1* IR remote Controler

                   1* AV Cable

                   1*HD cable

                   1* User Manual

Lead time: 15-20working days after deposit and confirming details

warranty: 1 year
